Repository
This guide explains how to view and create Repository resources using the AppsCode console. A Repository is the logical backup repository that stores individual snapshots of a database within a BackupStorage backend. It acts as the bridge between BackupConfigurations and the actual cloud storage.
1. Getting Started
Navigate to Backups in the left sidebar and select Repository. This opens the Repository list page showing all backup repositories in your cluster.

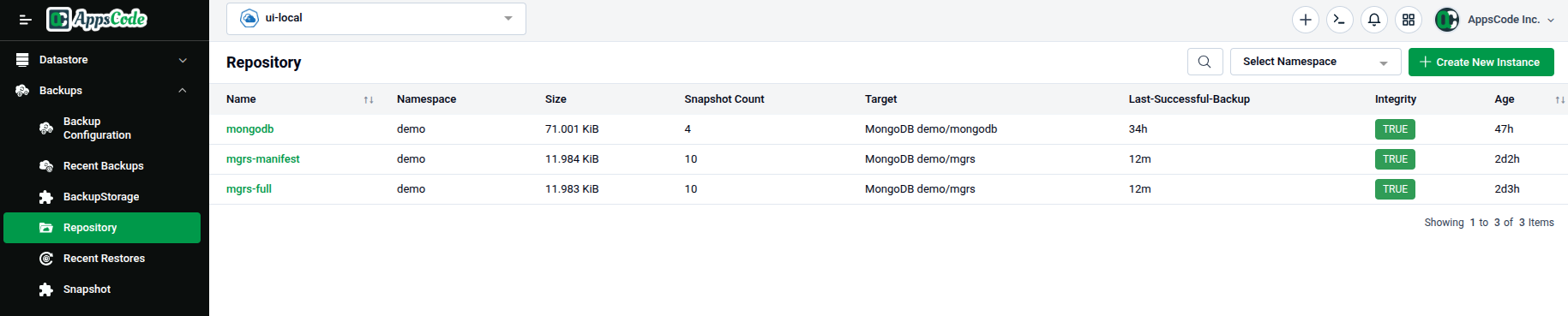

2. Repository List
The list page displays all Repository resources configured across your cluster. Use the Select Namespace dropdown to filter by namespace, or click Create New Instance to add a new repository.
| Column | Description |
|---|---|
| Name | The Repository resource name. |
| Namespace | The namespace where it is deployed. |
| BackupStorage | The BackupStorage backend this repository uses. |
| Target | The database this repository backs up. |
| Size | Total size of all snapshots in this repository. |
| Phase | Current state of the repository (e.g., Ready, Failed). |
| Age | How long ago the Repository was created. |
3. Viewing a Repository
Click on any Repository name in the list to open its detail page. The detail page displays repository metadata and all snapshots stored within it.

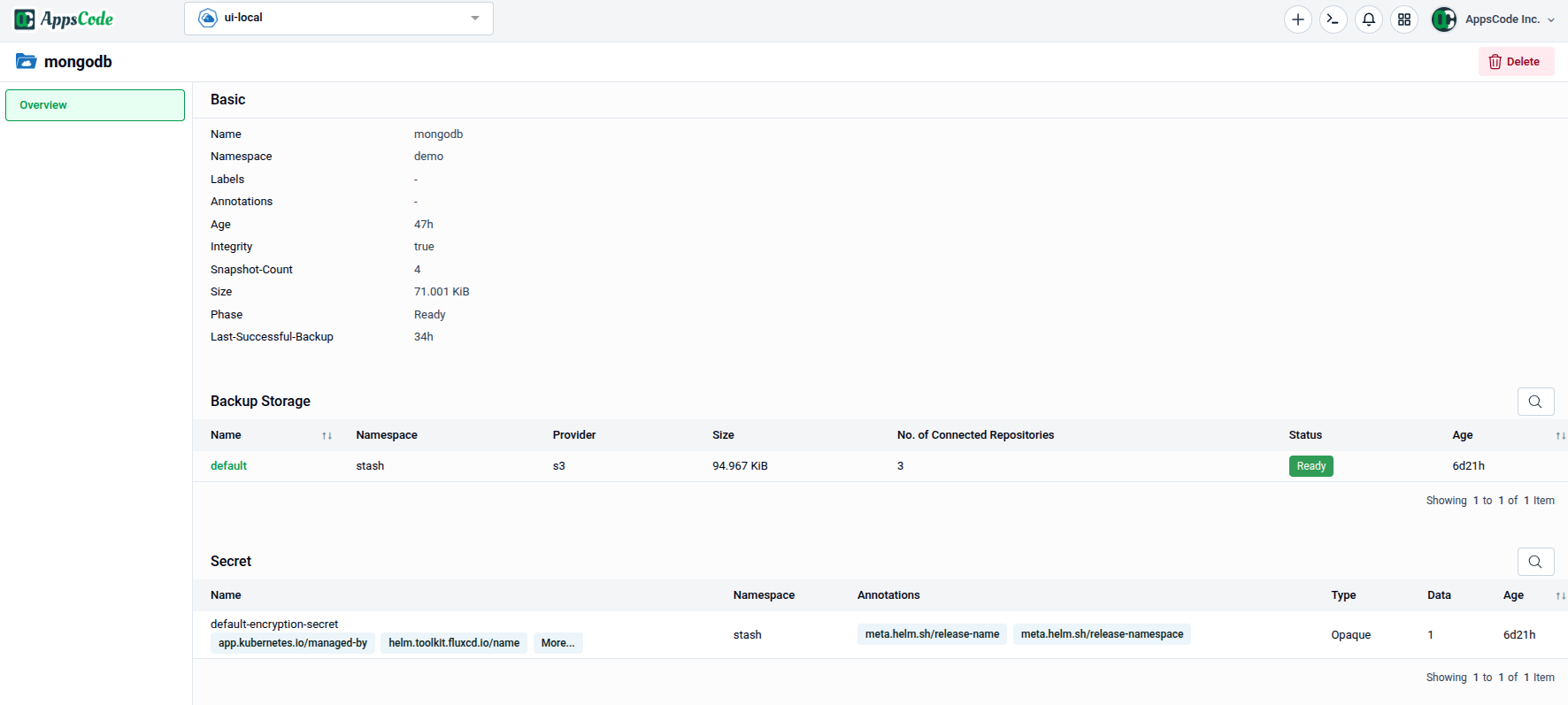

3.1 - Overview
The detail page shows comprehensive information about the repository:
Basic — Core metadata for the repository:
| Field | Description |
|---|---|
| Name | The Repository resource name. |
| Namespace | The namespace it belongs to. |
| Labels | Key-value labels for organization and filtering. |
| Annotations | Key-value annotations including references and management info. |
| UID | The unique Kubernetes identifier. |
| Phase | Current lifecycle phase (e.g., Ready). |
| Integrity Status | Whether the repository passed integrity validation (e.g., OK). |
| Last Integrity Check Time | Timestamp of the most recent integrity verification. |
Backup Storage — Reference to the underlying storage backend:
| Column | Description |
|---|---|
| Name | The BackupStorage resource name. |
| Namespace | Namespace of the BackupStorage. |
| Provider | The cloud provider (e.g., s3, azure). |
| Size | Total data stored across all repositories in this backend. |
| No. of Connected Repositories | Number of repositories using this storage. |
| Status | Storage backend status. |
| Age | Age of the BackupStorage resource. |
Snapshots — Individual backup snapshots stored in this repository:

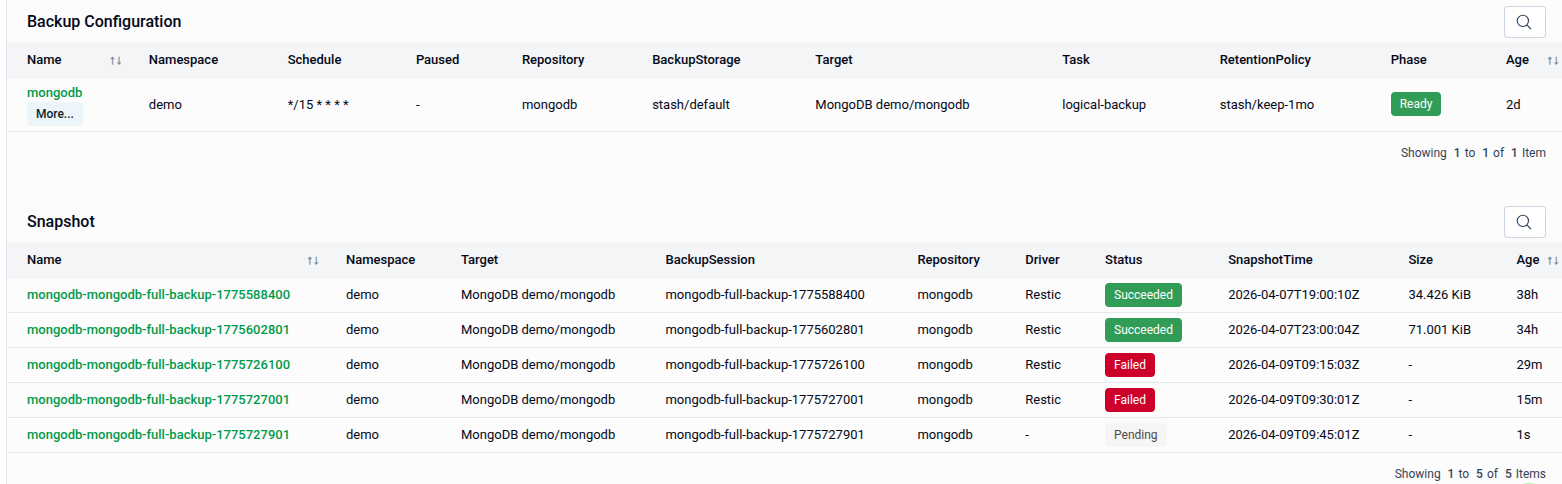

Backup Configuration — BackupConfigurations using this repository:
| Column | Description |
|---|---|
| Name | The BackupConfiguration resource name. |
| Namespace | Namespace of the configuration. |
| Schedule | The cron expression for backups. |
| Paused | Whether backups are currently paused. |
| Target | The database being backed up. |
| Session | The session name within the configuration. |
| Status | Configuration status. |
| Age | Age of the BackupConfiguration resource. |
Snapshots — All snapshots (backup snapshots) stored in this repository:
| Column | Description |
|---|---|
| Name | The Snapshot resource name (e.g., snapshot-20240115-143022). |
| Namespace | Namespace of the snapshot. |
| Repository | The repository containing this snapshot. |
| Invoker Kind | Type of resource that created the snapshot (e.g., BackupSession). |
| Invoker Name | Name of the invoker resource. |
| Backend Repository | The backend-level repository path. |
| Creation Timestamp | When the snapshot was created. |
| Deletion Policy | What happens when the snapshot is deleted. |
| Phase | Status of the snapshot (e.g., Ready, Failed). |
| Verification Status | Whether the snapshot data is valid (e.g., OK). |
| Age | Age of the Snapshot resource. |

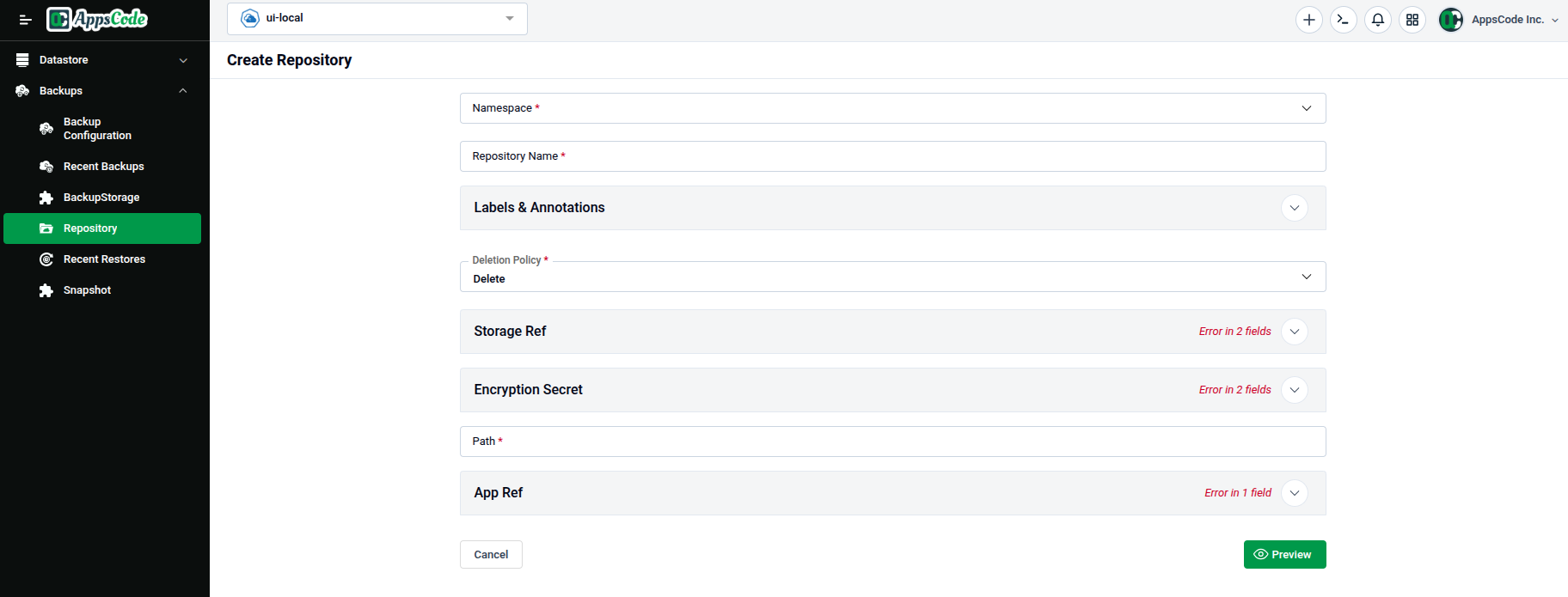

4. Creating a Repository
To create a new Repository, click Create New Instance from the Repository list page. The Create Repository form will open.
4.1 - Basic Information
The form starts with identity and deletion policy fields:
| Field | Description |
|---|---|
| Namespace | The Kubernetes namespace where the Repository will be created. Required. |
| Repository Name | A unique name for this Repository (e.g., mongodb-backups). Required. |
| Deletion Policy | Controls what happens when the Repository is deleted. Default: Delete. Required. |

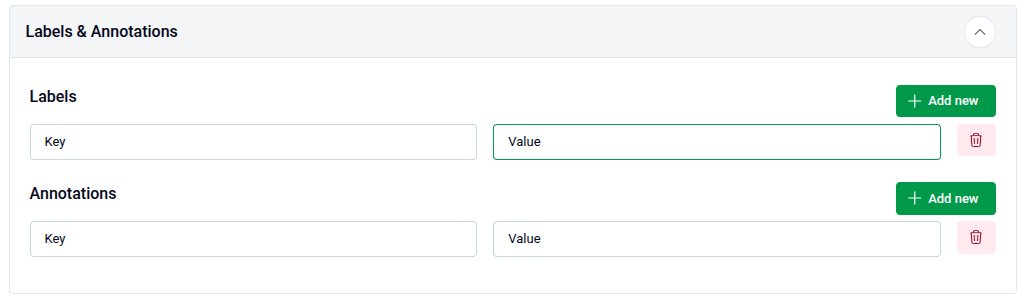

4.2 - Labels & Annotations
Expand the Labels & Annotations section to attach custom metadata:
- Use + Add new under Labels to add key-value label pairs.
- Use + Add new under Annotations to add key-value annotation pairs.
- Use the delete icon on any row to remove an entry.

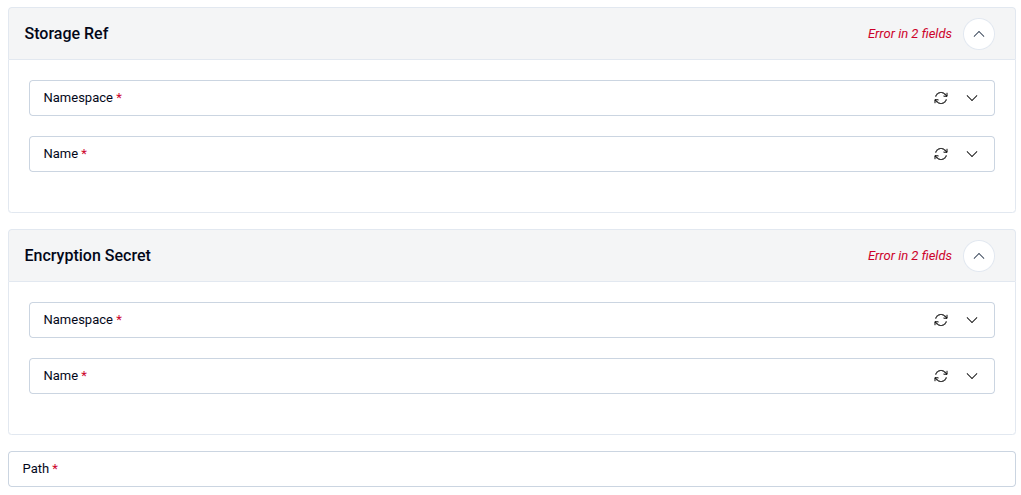

4.3 - Storage and Encryption Configuration
The Storage Ref, Encryption Secret, and Path sections configure where and how snapshots are stored.
Storage Ref — Reference to the BackupStorage backend:
| Field | Description |
|---|---|
| Namespace | The namespace of the BackupStorage resource. Required. |
| Name | The name of the BackupStorage resource. Required. |
Encryption Secret — Optional Kubernetes Secret containing encryption keys:
| Field | Description |
|---|---|
| Namespace | The namespace of the encryption Secret. Optional. |
| Name | The name of the Kubernetes Secret holding encryption keys. Optional. |
Path — The path prefix within the BackupStorage backend:
| Field | Description |
|---|---|
| Path | The directory path where snapshots are stored (e.g., mongodb/demo-db). Required. |

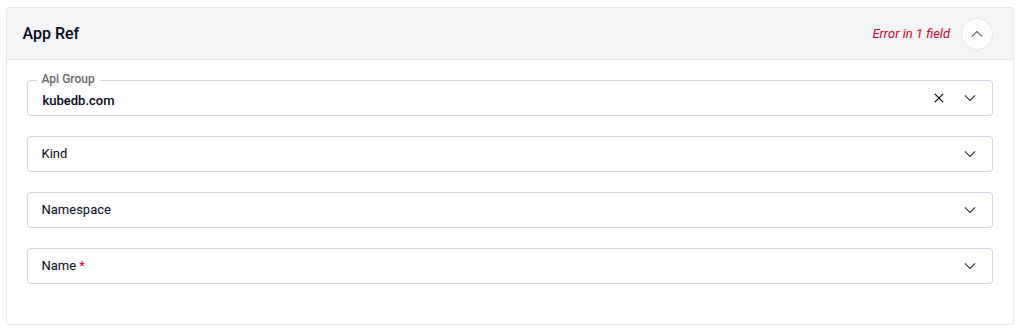

4.4 - App Reference
The App Ref section identifies the database resource this repository backs up.
| Field | Description |
|---|---|
| Api Group | The API group of the target resource (e.g., kubedb.com). Required. |
| Kind | The resource kind of the target database (e.g., MongoDB). Required. |
| Namespace | The namespace where the target database resides. Required. |
| Name | The name of the target database instance. Required. |
5. Preview and Submit
Once all required fields are filled, click Preview to review the generated Repository manifest before applying it.
- The manifest is shown in YAML view by default. Use the JSON button to switch to JSON format if preferred.
- Use the Copy button to copy the manifest to your clipboard.
- Click Previous to go back and adjust your settings if needed.
Tip: You can directly edit the YAML or JSON on the Preview page before submitting. This is useful for making precise adjustments beyond what the form fields expose.
- Submit: Once satisfied, click Submit to create the Repository in your cluster.
Note: After submitting, the Repository will be created and validated. Once
PhaseshowsReady, BackupConfigurations can reference it for storing snapshots.
Quick Reference
| Action | How to do it |
|---|---|
| View all Repositories | Backups → Repository |
| Filter by namespace | Use the Select Namespace dropdown on the list page |
| View repository detail | Click on the Repository name in the list |
| Check snapshots stored | Detail page → Snapshots table |
| Check linked configurations | Detail page → Backup Configuration table |
| Check repository status | Detail page → Basic section → Phase field |
| Check integrity status | Detail page → Basic section → Integrity Status field |
| Open the create form | List page → Create New Instance |
| Add labels or annotations | Labels & Annotations → + Add new → enter Key and Value |
| Reference a BackupStorage | Storage Ref → set Namespace and Name |
| Set encryption for backups | Encryption Secret → optionally set Namespace and Name |
| Set storage path | Path field → enter directory path for snapshots |
| Set the database target | App Ref → fill Api Group, Kind, Namespace, and Name |
| Review before creating | Click Preview |
| Edit manifest directly | Use the YAML / JSON toggle on the Preview page |
| Create the repository | Click Submit on the Preview page |
