Troubleshooting License Proxy Server Issues ​

The troubleshooting process involves verifying its API registration, service health, connectivity to the AppsCode backend etc.

1. Verify APIService Configuration ​

First, confirm that the APIService for the license-proxyserver is correctly registered and available within the Kubernetes API aggregation layer.

bash
kubectl get apiservice v1alpha1.proxyserver.licenses.AppsCode.com -o yaml

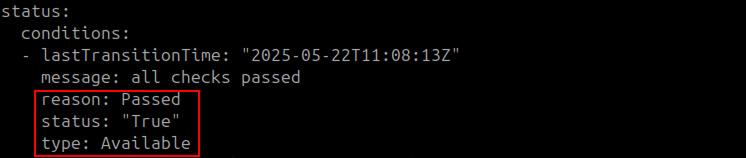

Interpretation: Examine the status.conditions section of the output. Look for a condition with type: Available and status: "True". APIService Status This indicates that the Kubernetes API aggregation layer is properly configured to route requests to the license-proxyserver. If this condition is "False" or missing, it suggests an issue with the APIService registration or the license-proxyserver's readiness.

2. Check API Resources ​

Next, verify that the custom API resources exposed by the license-proxyserver are recognized by the Kubernetes API.

bash
kubectl api-resources | grep -i license

Expected Output: You should see entries similar to these, confirming the presence of license-related API resources:

text
NAME                                SHORTNAMES                     APIVERSION                                           NAMESPACED   KIND
addofflinelicenses                                                 offline.licenses.AppsCode.com/v1alpha1               false        AddOfflineLicense
offlinelicenses                                                    offline.licenses.AppsCode.com/v1alpha1               true         OfflineLicense
licenserequests                                                    proxyserver.licenses.AppsCode.com/v1alpha1           false        LicenseRequest
licensestatuses                                                    proxyserver.licenses.AppsCode.com/v1alpha1           false        LicenseStatus

This output confirms that the Kubernetes API recognizes the custom resources provided by the license-proxyserver.

You can also inspect the raw API definition exposed by the license-proxyserver to confirm its capabilities:

bash
kubectl get --raw=/apis/proxyserver.licenses.AppsCode.com/v1alpha1/ | jq

Expected Output (abbreviated):

json
{
  "kind": "APIResourceList",
  "apiVersion": "v1",
  "groupVersion": "proxyserver.licenses.AppsCode.com/v1alpha1",
  "resources": [
    {
      "name": "licenserequests",
      "singularName": "licenserequest",
      "namespaced": false,
      "group": "proxyserver.licenses.AppsCode.com",
      "version": "v1alpha1",
      "kind": "LicenseRequest",
      "verbs": [
        "create"
      ]
    },
    {
      "name": "licensestatuses",
      "singularName": "licensestatus",
      "namespaced": false,
      "group": "proxyserver.licenses.AppsCode.com",
      "version": "v1alpha1",
      "kind": "LicenseStatus",
      "verbs": [
        "get",
        "list"
      ]
    }
  ]
}

Interpretation: This output confirms that the license-proxyserver API server is exposing licenserequests (with create verb) and licensestatuses (with get, list verbs) resources. This is crucial for the kubectl get licensestatus command to function correctly.

3. Verify license-proxyserver Service and Endpoints ​

If the API registration appears correct, the next step is to ensure that the Kubernetes Service and Endpoints for the license-proxyserver are functioning properly, allowing internal cluster traffic to reach the pod.

bash
kubectl get svc -n kubeops license-proxyserver
kubectl get endpoints -n kubeops license-proxyserver

Interpretation:

  • For the kubectl get svc -n kubeops license-proxyserver command, verify that the service TYPE is ClusterIP and has a cluster-IP.
text
NAME                  TYPE        CLUSTER-IP     EXTERNAL-IP   PORT(S)            AGE
license-proxyserver   ClusterIP   10.43.189.38   <none>        443/TCP,8080/TCP   19h
  • For the kubectl get endpoints -n kubeops license-proxyserver command, ensure that the endpoints list contains the IP address(es) of the license-proxyserver pod(s). The IP(s) listed here should match the IP(s) of the actual license-proxyserver pod(s) in the kubeops namespace. If the endpoints are missing or incorrect, it indicates a problem with the service selector or the license-proxyserver pod itself (e.g., pod not running, crashlooping).

4. Test AppsCode Backend Connectivity (for Online Mode/Fallback) ​

If the in-cluster components of the license-proxyserver appear healthy, and you are operating in Online Mode or troubleshooting an Offline Mode fallback scenario, verify that the cluster can reach the AppsCode licensing backend.

  1. Check Network Connectivity: Ensure that the cluster has internet access and can reach the AppsCode licensing backend. This may involve checking firewall rules, network policies, or proxy settings.

  2. Get Cluster ID: Retrieve the unique identifier for your Kubernetes cluster:
    bash
      kubectl get ns kube-system -o=jsonpath='{.metadata.uid}'
    Copy the output, which will be your <CLUSTER_ID>.

  3. Get Platform Token: Extract the platform token used by the license-proxyserver for authentication with the AppsCode backend:
    bash
    kubectl get secrets -n kubeops ace-licenseserver-cred -o=jsonpath='{.data.license-proxyserver\.yaml}' | base64 -d
    From the output, locate the token field under platform: (e.g., token: ac9b9eeec181fb09j73ab1604bd0180a4361e859). Copy this value as your <TOKEN>.

  4. Get License Using CURL: Perform a curl request to the AppsCode Backend: Use curl from within a pod in your cluster (or a machine with network access to the cluster's outbound internet) to simulate a license request to the AppsCode backend. Replace <CLUSTER_ID> and <TOKEN> with the values obtained in the previous steps. The features can be get from the Contract details page in AppsCode Billing Console
bash
  curl -k -X 'POST' -d '{"cluster":"<CLUSTER_ID>","features":["kubedb-enterprise"]}' \
  -H 'Authorization: Bearer <TOKEN>' \
  -H 'Content-Type: application/json' \
  -H 'User-Agent: license-proxyserver/v0.0.22' \
  'https://api.AppsCode.com/api/v1/license/issue' --compressed

Expected curl Response Analysis: A successful response indicates that your cluster can communicate with the AppsCode backend and that the authentication token is valid. The response will contain contract and license sections:

json
  {
    "contract": {
        "id": "1187",
        "startTimestamp": "2025-05-21T00:00:00Z",
        "expiryTimestamp": "2025-06-21T23:59:59Z"
    },
    "license": "LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSUlaRENDQjB5Z0F3SUJBZ0lJUFY2NEVSL0o1aE13RFFZSktvWklodmNOQVFFTEJRQXdKVEVXTUJRR0ExVUUKQ2hNTlFYQndjME52WkdVZ1NXNWpMakVMTUFrR0ExVUVBeE1DWTJFd0hoY05NalV3TlRJek1EUTFNVE0xV2hjTgpNalV3TlRNd01EUTFNVE0xV2pDQ0JRUXhEekFOQmdOVkJBWVRCbXQxWW1Wa1lqRVRNQkVHQTFVRUNCTUtaVzUwClpYSndjbWx6WlRHQ0ErZ3dnZ1BrQmdOVkJBY01nZ1BiVW1WemRISnBZM1JwYjI1elBYc05DaUFnSWtSeWRXbGsKSWpvZ2V3MEtJQ0FnSUNKMlpYSnphVzl1UTI5dWMzUnlZV2x1ZENJNklDSXFJZzBLSUNCOUxBMEtJQ0FpUld4aApjM1JwWTNObFlYSmphQ0k2SUhzTkNpQWdJQ0FpZG1WeWMybHZia052Ym5OMGNtRnBiblFpT2lBaUtpSXNEUW9nCklDQWdJbVJwYzNSeWFXSjFkR2x2Ym5NaU9pQmJEUW9nSUNBZ0lDQWlUM0JsYmxObFlYSmphQ0lOQ2lBZ0lDQmQKRFFvZ0lIMHNEUW9nSUNKR1pYSnlaWFJFUWlJNklIc05DaUFnSUNBaWRtVnljMmx2YmtOdmJuTjBjbUZwYm5RaQpPaUFpS2lJTkNpQWdmU3dOQ2lBZ0lrdGhabXRoSWpvZ2V3MEtJQ0FnSUNKMlpYSnphVzl1UTI5dWMzUnlZV2x1CmRDSTZJQ0lxSWcwS0lDQjlMQTBLSUNBaVRXRnlhV0ZFUWlJNklIc05DaUFnSUNBaWRtVnljMmx2YmtOdmJuTjAKY21GcGJuUWlPaUFpS2lJTkNpQWdmU3dOQ2lBZ0lrMWxiV05oWTJobFpDSTZJSHNOQ2lBZ0lDQWlkbVZ5YzJsdgpia052Ym5OMGNtRnBiblFpT2lBaUtpSU5DaUFnZlN3TkNpQWdJazE1VTFGTUlqb2dldzBLSUNBZ0lDSjJaWEp6CmFXOXVRMjl1YzNSeVlXbHVkQ0k2SUNJcUlnMEtJQ0I5TEEwS0lDQWlVR1Z5WTI5dVlWaDBjbUZFUWlJNklIc04KQ2lBZ0lDQWlkbVZ5YzJsdmJrTnZibk4wY21GcGJuUWlPaUFpS2lJTkNpQWdmU3dOQ2lBZ0lsQm5RbTkxYm1ObApjaUk2SUhzTkNpQWdJQ0FpZG1WeWMybHZia052Ym5OMGNtRnBiblFpT2lBaUtpSU5DaUFnZlN3TkNpQWdJbEJuCmNHOXZiQ0k2SUhzTkNpQWdJQ0FpZG1WeWMybHZia052Ym5OMGNtRnBiblFpT2lBaUtpSU5DaUFnZlN3TkNpQWcKSWxCdmMzUm5jbVZ6SWpvZ2V3MEtJQ0FnSUNKMlpYSnphVzl1UTI5dWMzUnlZV2x1ZENJNklDSXFJaXdOQ2lBZwpJQ0FpWkdsemRISnBZblYwYVc5dWN5STZJRnNOQ2lBZ0lDQWdJQ0pQWm1acFkybGhiQ0lzRFFvZ0lDQWdJQ0FpClJHOWpkVzFsYm5SRVFpSU5DaUFnSUNCZERRb2dJSDBzRFFvZ0lDSlFjbTk0ZVZOUlRDSTZJSHNOQ2lBZ0lDQWkKZG1WeWMybHZia052Ym5OMGNtRnBiblFpT2lBaUtpSU5DaUFnZlN3TkNpQWdJbEpoWW1KcGRFMVJJam9nZXcwSwpJQ0FnSUNKMlpYSnphVzl1UTI5dWMzUnlZV2x1ZENJNklDSXFJZzBLSUNCOUxBMEtJQ0FpVW1Wa2FYTWlPaUI3CkRRb2dJQ0FnSW5abGNuTnBiMjVEYjI1emRISmhhVzUwSWpvZ0lqdzlJRGN1TkRBaURRb2dJSDBzRFFvZ0lDSlQKYjJ4eUlqb2dldzBLSUNBZ0lDSjJaWEp6YVc5dVEyOXVjM1J5WVdsdWRDSTZJQ0lxSWcwS0lDQjlMQTBLSUNBaQpXbTl2UzJWbGNHVnlJam9nZXcwS0lDQWdJQ0oyWlhKemFXOXVRMjl1YzNSeVlXbHVkQ0k2SUNJcUlnMEtJQ0I5CkRRcDlNWUdrTUJjR0ExVUVDaE1RYTNWaVpXUmlMV052YlcxMWJtbDBlVEFYQmdOVkJBb1RFR3QxWW1Wa1lpMWwKZUhRdGMzUmhjMmd3R0FZRFZRUUtFeEZyZFdKbFpHSXRZWFYwYjNOallXeGxjakFZQmdOVkJBb1RFV3QxWW1WawpZaTFsYm5SbGNuQnlhWE5sTUJ3R0ExVUVDaE1WY0dGdWIzQjBhV052YmkxbG5SbGNuQnlhWE5sTUJBNEdBMVVFCkNoTVhhM1ZpWldSaUxXMXZibWwwYjNKcGJtY3RZV2RsYm5ReEdqQVlCZ05WQkFzVEVXdDFZbVZrWWkxbGJuUmwKY25CeWFYTmxNUzB3S3dZRFZRUURFeVJsTlRjd1pqVXpNeTAwTmpSbExUUTNaVGd0WVdZMU9TMDJOek16TlRBMQpOVFpoWkRJd2dnRWlNQTBHQ1NxR1NJYjNEUUVCQVFVQUE0SUJEd0F3Z2dFS0FvSUJBUUNhVDZsdldiSFFsTVpZClphRjNNTStjQ0VPblM0cVJ2cWoyWTNaS2E3K1d1THNhd09xQ2MxdzlLMXpReGVXaGpPSktSL1lqSlNzdUpNV1MKVkY2cEFRZXFEUWgwdFNFUE42Z0pCdmZIVDlxOXliSTc3Q0kwcDFKMTFYL1BFSVhyZStUbWpWWEthcTV3WUNOcQpEdExwZ0tEUG5TajczdHNoSFBhV2Jqb0VLL01OTEw0ZVI0ZUtvRHNqWEN1TEZXeVl4THBZSHhBSVZHN0c1VDB3ClRaaVpSS2dvSGFHOU9FYmZWNmVxT3h3ODNJcGlnV1JvNlZ0ekcwMEpWMG5uM05oTXRmdk01eEUrV3ZndVd0czcKdkFZZTk4UXJ2TitHUVphTTB0RDVUZ1F5SXhIdjdHZEdDMUVUWlhUc2dMNVIrVFg5SXgzV21zQXFDM0VSQncrbgpMZEJvSGx3SkFnTUJBQUdqZ2JZd2diTXdEZ1lEVlIwUEFRSC9CQVFEQWdXZ01CTUdBMVVkSlFRTU1Bb0dDQ3NHCkFRVUZCd01DTUI4R0ExVWRJd1FZTUJhQUZOa3hFU1FnWHIwYmVyTXdJdEtiMFBPU3hLQjVNR3NHQTFVZEVRUmsKTUdLQ0pHVTFOekJtTlRNekxUUTJOR1V0TkRkbE9DMWhaalU1TFRZM016TTFNRFUxTm1Ga01vRWhiM0puTFhoNQplaUE4TXpNME5qRXlRR2xrTG1KNWRHVXVZblZwYkdSbGNuTStnUmN6TXpRMk1USkFhV1F1WW5sMFpTNWlkV2xzClpHVnljekFOQmdrcWhraUc5dzBCQVFzRkFBT0NBUUVBQWRUeXpWWE9SR09zS2FaUDFRZFQxT0lhUW5KWm9wOTgKdUd6R1l2clNlSmdVTnRPaVNka2U0N1VVTGEzTkE4SDhtViszNG1zcUFaUTRkYWppSVova001cm5DbFdDUWE3MgpGV3dJUU9xRm4rcEFReDhYeEVJOEs3OSt6SzBESlRPdHpCYTRoVWgyNlMxOFFMQWRuN1VYWUJ0S3JGTm9VVGoxCmF6ZVF3bDIwbW1IQkNPcVBKdE4wSjVtendOajVzVWhNWG05ZUY4djlhQW9KQ2xySlBuY3BHdWFoQ1JFOW1RbWMKMkw4YnZPYVAzODl4ZmF5VDFsYXBJcXA3QUZockc3RU5RZUF5QmpOUGlJZG1uNExmK0VVdFFwbEd4V0pSdVJ4NgpNdFo0M0lVLzJhM3lvTzRwSzBqNXdSM28xcWllWkN3Q2w0UEpXZFNuT1I2dkVoTmE3TTlwcUE9PQotLS0tLUVORCBDRVJUSUZJQ0FURS0tLS0tCg=="
  }

Interpretation:

  • contract.id: This field is crucial. If it displays 0, it indicates that the license issued is a 1-month (30-day) free trial license, automatically provided by AppsCode because the cluster is not explicitly associated with any paid contract. This is useful for initial testing. Each cluster is eligible for this free trial only once.
  • contract.startTimestamp and contract.expiryTimestamp: These fields define the validity period of the contract under which the license was issued.
  • license: This is the actual Base64-encoded license token. A valid token here confirms that the AppsCode backend successfully issued a license. If the curl command fails (e.g., connection refused, timeout, authentication error), it indicates a network or authentication issue preventing the license-proxyserver from reaching the AppsCode backend.

5. Conclusion ​

The AppsCode License Management System delivers a lightweight, in-cluster authority for fast, reliable license validation in Kubernetes. Its online and offline modes accommodate both always-connected and isolated environments. It empowers customers with self-service capabilities for cluster association.

For unresolved issues, email support@appscode.com or platform-support@appscode.com, or file a ticket at AppsCode Contact.
